226121B: Full suspension bush kit

New product

481,95 €

Delivery time: 3-5 w.d.

- +

More info

KIT ID: 226121B

Name: Full suspension bush kit

Fit:
Audi S3 99-03
Audi A3 96-03 8L Quattro
Audi TT 99-03 Quattro

Skoda Octavia I 96-04 4x4

Seat Leon & Cupra R 4x4 99-05

Volkswagen Bora 98-05 4x4
Volkswagen Golf IV R32
Volkswagen Golf IV 4x4
Include:

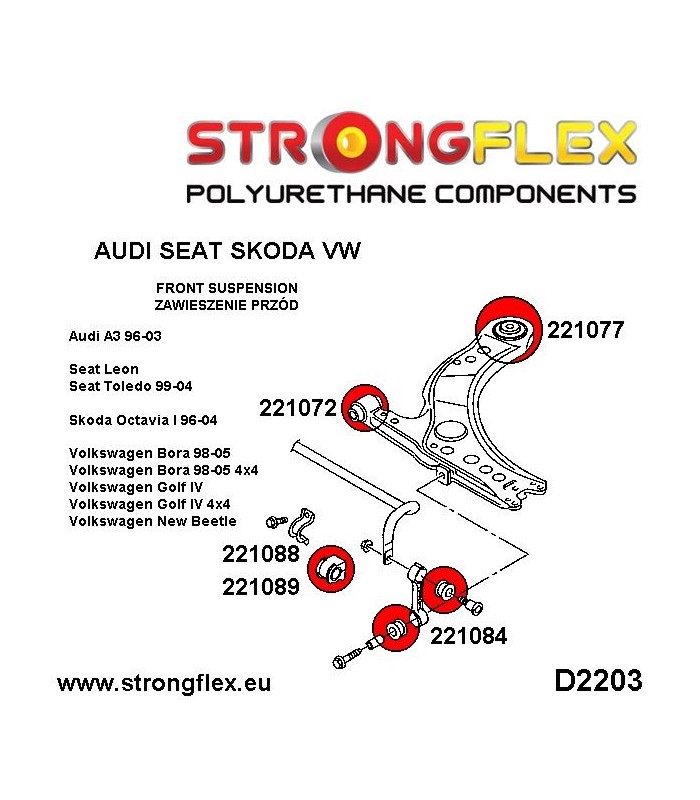

2 x 221088B Front anti roll bar bush
or
2 x 221089B Front anti roll bar bush
Diameters:
15,19,20,21,23mm
2 x 221072B Front wishbone front bush (30mm)
or
2 x 221343B Front wishbone front bush (45mm)

2 x 221344B Front wishbone rear bush
or
2 x 221077B Front wishbone rear bush

4 x 221371B Rear wishbone inner bush
4 x 221940A Rear tie bar to hub bush SPORT
2 x 221372B Rear lower wishbone front mounting bush
2 x 221445B Rear anti roll bar bush
Diameters:
12,13,14,15,16,17,18,19,20,21mm
2 x 221862B Rear diff mount - front bush
2 x 221863B Rear diff mount - rear bush
4 x 221864B Rear subframe bush

Pcs/prod: 26

Required/car: 1

Diagrams:
S2201
S2202
D2207
D2208
D2216
S2206

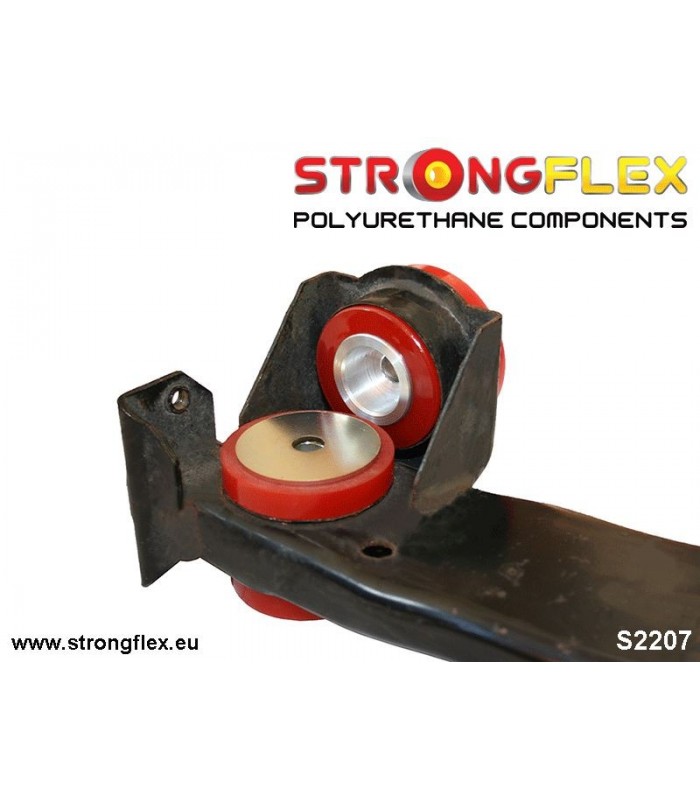

S2207

NOTE!

In the models in which the "steel cast arm" type arms were mounted, there are two types of front arm bushings. The earlier models were equipped with smaller Ø30mm bush (221072), whereas the later models had Ø45mm larger bush (221343).
The rear bushing for this arm is 221344.

For the "steel pressed / tin" arms, the matching bushes are: 221072 and 221077.

Before ordering, please check the type of the arm carefully. In the case of the "steel cast arm", check the diameter of the front bush additionally (See photo S2201)!


There are two types of front stabilizer bushing.
OLD TYPE - 221088 or NEW TYPE - 221089
Before buying check the type of bush and diameter.
See picture S2202

Bush 221940A is only available in 90ShA hardness (yellow) because the original rubber bush is made of a hard rubber compound.
The use of the 80ShA hardness bush (red) will reduce the driving of the car to the original rubber bush.

Hardness: 80ShA

Material: POLYURETHANE (PUR/PU)

To every product we add grease!
