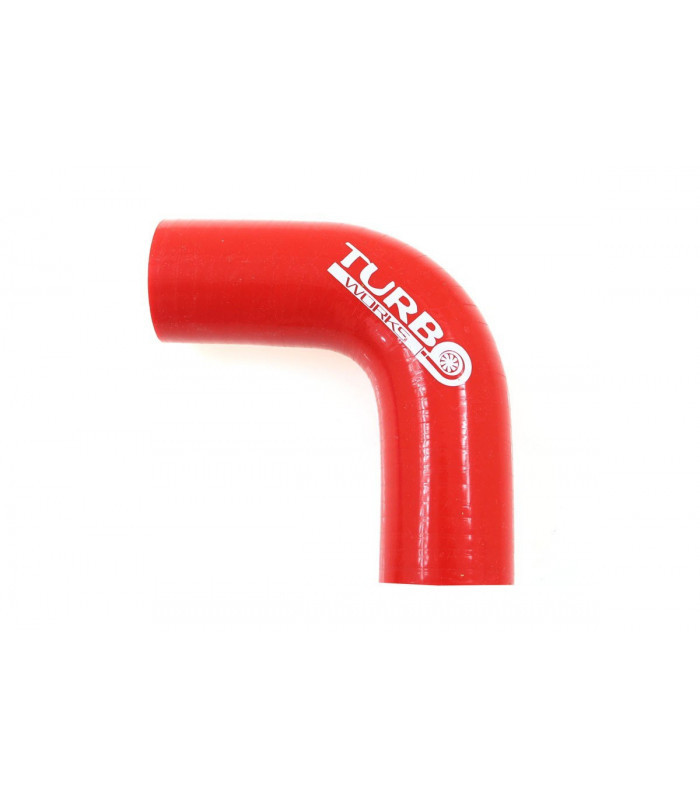

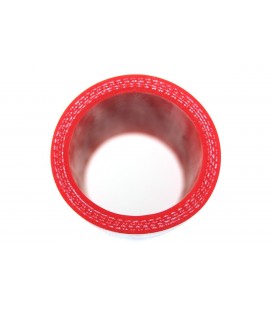

Silicone elbow TurboWorks Red 90deg 32mm

TurboWorks silicone connector
Application: intake system, cooling system.
Four time braided, 5mm wall thickness, tested up to 7 bar, temperature range -50 to + 260 ° C. Made of high quality silicone, resistant to all types of refrigerants, greases and oil vapors.

Dimensions:

• D1=32mm
• D2=32mm
• L=100mm

Hight quality clamps are also availible in our offer:

Clamp size chart:
				Silicone diameter	SGB Clamp	GBS Clamp	T-Clamp
				10mm	17-19
				12mm	19-21	19-29
				15mm	22-24	22-32
18mm	25-27	25-38
20mm		25-38
25mm		25-38
28mm		32-44
30mm		32-44	37-42
32mm		32-44	37-42
35mm		35-51	43-49
38mm		35-51	43-49
40mm		35-51	47-55
45mm		38-57	47-55
51mm		44-64	54-62
57mm		51-70	60-68
60mm		64-76	67-75
63mm		64-76	67-75
67mm		70-89	73-81
70mm		70-89	73-81
76mm		70-89	79-87
80mm		76-92	86-94
84mm		80-100	89-99
89mm		90-110	89-99
102mm		90-110	105-113
