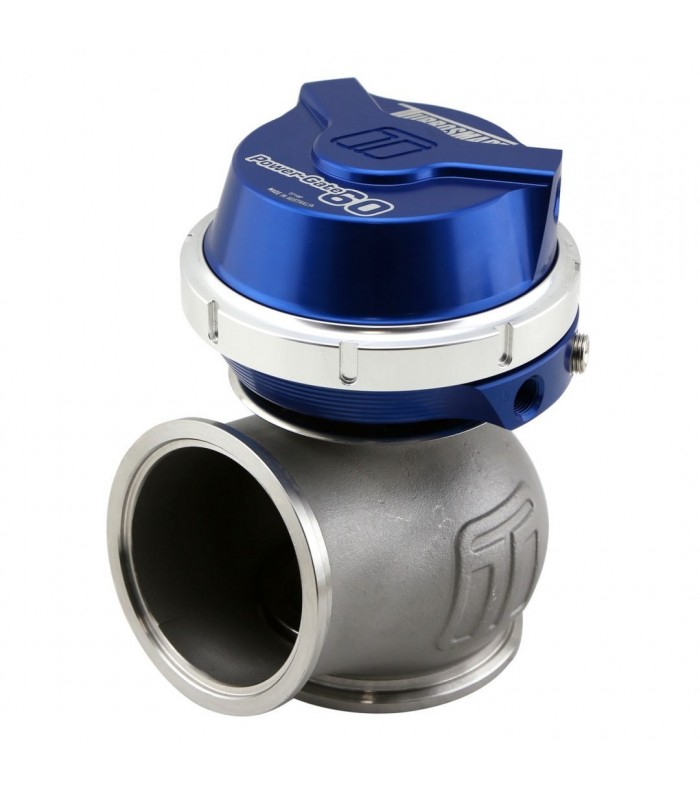

Turbosmart Wastegate Powergate 60MM Gen V 1 Bar

The Gen-V WG60 Power-Gate60 external wastegate is a cost effective, high performing 60mm external wastegate, the largest in the Gen-V range.

The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, classic 2 bolt flanges (71mm spacing), liquid-cooling, 1/8″ NPT ports, and are provided with a range of springs.

Product features summary:

• Liquid cooling provision
• User adjustable actuator position
• Modular actuator design
• Suitable for 2 bolt flange applications (71 mm spacing)

Included in the Box:

• Wastegate unit (pre-assembled with spring as per order)
• SS316 Valve seat
• WG38 SS manifold gaskets
• Mounting Bolts and Nuts
• Collar tool (master/slave)
• 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed)
• 4x 1/8" NPT plugs (1x installed) / 2x 1/8" NPT nipples
• Sticker
• Instruction card
